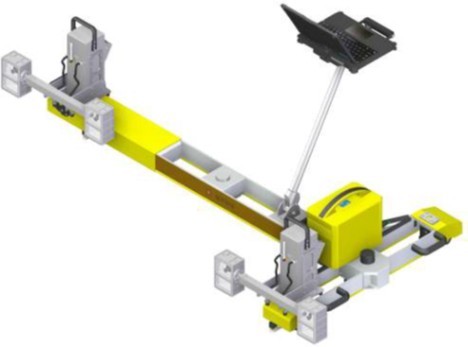

Track Geometry System Overview

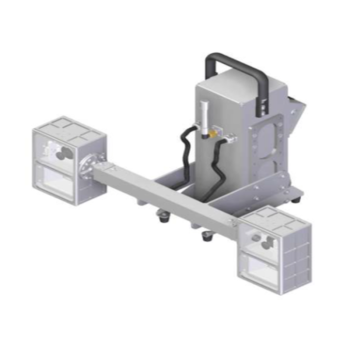

Track Structure Defect Inspection Scanner (abbreviated as "Defect Inspection Scanner") consists of a main unit, high-speed cameras, and LED fill lights. Utilizing technologies such as high-speed image acquisition and OSD annotation, it performs collection and storage management of track structure image data. This system enables simultaneous inspection of track static geometric parameters and structural conditions, thereby enhancing the efficiency of inspection work.

Key Feature

⚪ High-speed image acquisition by cameras with real-time online compression.

⚪ Multi-channel, low-latency network image preview display and real-time storage.

⚪ Industrial integrated design for simple and easy installation.

High-speed PWM (Pulse Width Modulation) adjustable fill lighting control.

⚪ OSD (On-Screen Display) text and image overlay.

Technical Specifications

⚪ Camera Sensor Specifications: Advanced CMOS sensing chip, 1/4 inch, 1280*720 (1 Megapixel), 60 fps, global shutter.

⚪ Video Compression: Real-time H.264.

⚪ Power Consumption: 4W (Day Mode) / 14W (Night Mode) - for a single recording unit with 2 lenses and 2 fill lights.

⚪ Data Acquisition Modes: Designated image capture, continuous video recording.

⚪ Video Data Formats: MP4, AVI, etc.

⚪ Video Data Size: Approximately 6 GB/hour - for a single recording unit with 2 lenses (actual size depends on frame rate and bitrate).

⚪ Power Supply: 7.4V 15Ah (supports continuous operation: approx. 18 hours in Day Mode, 6 hours in Night Mode).

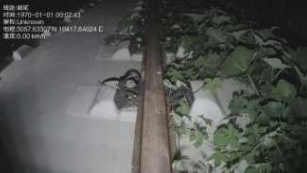

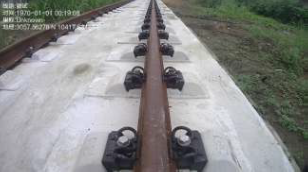

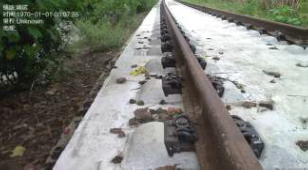

Application Effectiveness
