Rail Grinder RCG-L65: Lithium Battery Numerical Control Rail Grinder

group name: Railway Grinder Machine

Min Order: 1 piece

brand name: Railway Maintenance Equipment & Solutions

model: RCG-L65

Nearest port for product export: no

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Wed, 22 Apr 2026 21:31:39 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

The machine uses a lithium battery as its power source and grinding discs as the abrasive medium

Detailed

Overview

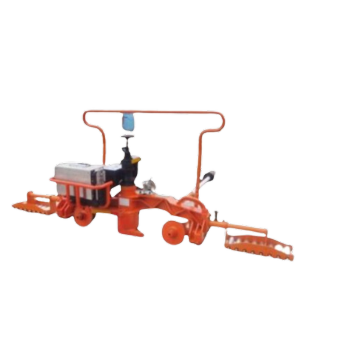

The Rail Grinder RCG-L65 is a new-generation lithium battery numerical control rail grinder evolved from the NGM-6.3 II platform. It replaces the internal combustion engine with a 5.0 kW DC brushless motor and 72V-20Ah lithium battery, eliminating noise, vibration, and exhaust emissions—ideal for urban transit, tunnels, and depots.

It inherits the intelligent copying mechanism but enhances efficiency through digital feed control. The machine achieves high copying accuracy and polishing efficiency, with grinding wheel stroke of 59 mm, profile track of 1010 mm, and feed accuracy of 0.01–0.5 mm.

Weighing only 62 kg (without battery) and operating within –40°C to +70°C, the RCG-L65 offers long runtime (6 aluminum welds per charge) and IP45 protection. It’s the smart, sustainable choice for modern rail infrastructure teams.

Key Features

⚪ 72V Lithium-Powered DC Control System: Integrated with comprehensive safety protections against overcurrent, overvoltage, undervoltage, and overtemperature.

⚪ Multi-Function Versatility: A single machine supports various grinding applications through the use of different accessories.

⚪ Intelligent Electric Control: Features two adjustable grinding speeds – low speed for rough grinding and high speed for fine finishing.

⚪ Dual Operating Systems: Supports both manual handwheel feed and electronic feed for flexible operation.

⚪ Lithium Battery Power Source: Provides low-noise, low-emission operation, capable of functioning in diverse environments including high altitudes, rain, and extreme cold (e.g., -30°C).

⚪ Superior Endurance: A single charge supports grinding at least 6 thermite welds or 8 laser welds.

Technical Specifications

No.	Parameter	Specification or Value
1	Rated Power	5.0 kW
2	Grinding Wheel Spindle Speed	4500 r/min (Constant Speed)
3	Grinding Wheel Feed Mode	Manual Feed / 3-stage Electric Feed
4	Total Grinding Wheel Feed	≥ 45 mm
5	Grinding Wheel Feed Accuracy	≤ 0.10 mm
6	Maximum Grinding Wheel Tilt Range	90° (unidirectional)
7	Profiling Function	Capable of profile grinding on the outer contour of P43 to P75 kg/m rails
8	Intelligent Control Features	Power level display, feed display
9	Lithium Battery Capacity	72 V, 20 Ah
10	Machine Weight (excluding battery pack)	≤ 62 kg
11	Protection Rating	IP45
12	Insulation Performance	Insulation resistance between profiling wheel/support wheels and machine body ≥ 1 MΩ
