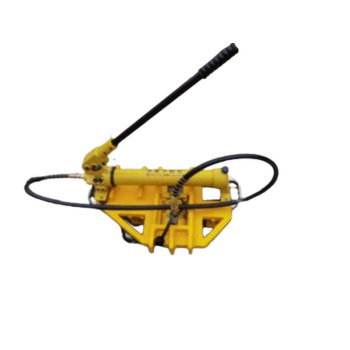

Rail Insulated Joint Separator

group name: Others

Min Order: 1 piece

brand name: Railway Maintenance Equipment & Solutions

model: Rail Insulated Joint Separator

Nearest port for product export: no

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Wed, 21 Jan 2026 14:35:32 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

The Rail Insulated Joint Separator is designed to disassemble insulated rail joints. It operates by applying a lateral shear force to induce a slight displacement misalignment between the two rails at the insulated joint gap. This misalignment overcomes the shear resistance bonding the insulating plates to the rails, effectively separating the plates from the rail ends.

Detailed

Rail Insulated Joint Separator Overview

The Rail Insulated Joint Separator is designed to disassemble insulated rail joints. It operates by applying a lateral shear force to induce a slight displacement misalignment between the two rails at the insulated joint gap. This misalignment overcomes the shear resistance bonding the insulating plates to the rails, effectively separating the plates from the rail ends.

Key Features

⚪ Lightweight & Robust: Total weight ≤ 60 kg, ensuring portability without compromising strength.

⚪ High Cutting Capacity: Generates a maximum shear force of 280 kN, sufficient for efficient separation.

⚪ Hydraulic Operation: Utilizes a matched 40T hydraulic jack for reliable and powerful force application.

⚪ High Efficiency: Completes the entire separation process, from setup to finish, within 5 minutes, minimizing track occupancy time.

Technical Specifications

Total Weight	≤ 60 kg
Maximum Shear Force	280 kN
Matched Tool	Hydraulic Jack (40T)
Working Efficiency	≤ 5 minutes (From equipment installation to complete separation)
