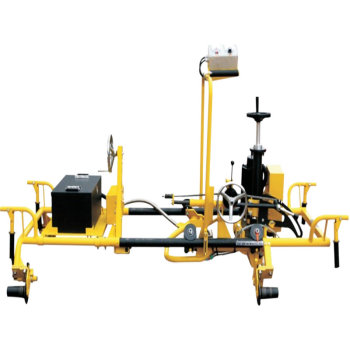

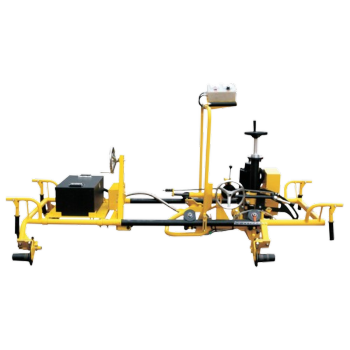

Rail Grinder RCG-L50: Lithium Intelligent Turnout Grinder

group name: Railway Grinder Machine

Min Order: 1 piece

brand name: Railway Maintenance Equipment & Solutions

model: RCG-L50

Nearest port for product export: no

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Fri, 20 Mar 2026 23:47:21 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

Lithium-powered vertical-axis turnout grinder—quiet, versatile, and efficient for rail head, weld, and web grinding in complex zones.

Detailed

Overview

The Rail Grinder RCG-L50 is a lithium battery vertical axis turnout grinder developed from the NCM-5 II platform. It upgrades the power source to a 4.7 kW DC brushless motor and 72Ah lithium battery, reducing noise, vibration, and emissions while retaining full multifunctionality.

Designed for turnout maintenance, it efficiently grinds rail heads, repair welds, joint welds, and—even with optional attachments—the rail web. It features a vertical feed stroke of 200 mm, lateral travel stroke of 385 mm, and grinding wheel speed of 3600 r/min.

Weighing 90 kg and operating in temperatures from –40°C to +70°C, the RCG-L50 creates a healthier work environment and enables rapid on/off-track transitions—perfect for metro systems and environmentally regulated areas.

Key Features

⚪ Powered by lithium battery and driven by a DC brushless motor, enabling zero emissions, low vibration, and low noise operation, improving the work environment.

⚪ Designed specifically for turnouts, while also perfectly suitable for various tasks on ordinary rails, such as rail head profiling and weld grinding.

⚪ Vertical axis design with grinding wheel offering extensive vertical, lateral travel, and angular deflection, adapting to complex profiles; fast on/off-track transition.

⚪ Integrated intelligent control unit enables precise feed control, enhancing consistency and quality of grinding operations.

Tech Sheet

Category	Technical Parameter	Specification / Value
Power & Battery System	Drive Motor	DC Brushless Motor
	Rated Power	4.7 kW
	Battery Capacity	72 Ah
	Battery Operating Temperature	40 ℃ ~ +70 ℃
Core Grinding Performance	Grinding Wheel Speed	3600 r/min
	Feed Accuracy	0.1 mm
	Vertical Stroke	200 mm
	Lateral Stroke	385 mm
	Deflection Angle Range	-80° ~ +30°
	Standard Wheel Size	125 × 65 × M20 (mm)
Physical Parameters	Dimensions (L×W×H)	2126 × 1100 × 1000 mm
	Total Weight	90 kg
