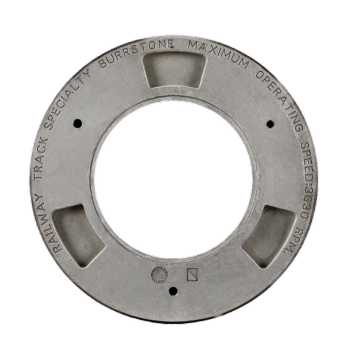

Rail Grinding Wheel MRC-L260090 High-Precision for Harsco PGM-48/96

group name: Railway Grinding Wheel

Min Order: 1 piece

brand name: Railway Maintenance Equipment & Solutions

model: MRC-L260090

Nearest port for product export: no

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Wed, 25 Mar 2026 16:39:07 GMT

contact supplier

Paramtents

Category Rail Grinder
Process Hot Pressing
Materials luminum Matrix+ Zirconia+ Glass Fiber
Hardness-Material Identification Z/A F16Y5B
Granularity 16 Grit
Packaging Wooden Case
Certification ISO
Business Model Customization
Heavy Haul Railway Axle Load Capacity ≥ 30t

Packging & Delivery

Min Order1 piece

Briefing

Model: 260×90×154mm
Gross Weight: 9.82 kg
Packing Dimensions: 300×100×180 mm
Compatible With: HARSCO PGM48/96
Hot Press | ZA

Detailed

Molaton RailCare-L260090 Rail Grinding Wheel Product Description

Molaton RailCare-L260090: Optimized for Heavy-Duty Rail Grinding

The Molaton RailCare-L260090 is a high-performance grinding wheel, specifically engineered for heavy-duty rail maintenance. Designed as a direct replacement for OEM wheels on Harsco PGM48 and PGM96C grinding vehicles, it features a zirconia-resin abrasive matrix reinforced with glass fiber, ensuring extended service life and precise rail head profiling under demanding conditions.

Molaton RailCare-L260090 Rail Grinding Wheel Specifications

Technical Specifications
Parameter	Value
OD×Thickness×Bore	260×90×154mm
Gross Weight	9 kg
Max Speed	50 m/s
Abrasive	Zirconia Alumina (ZA)
Bond	Resin, Glass Fiber Reinforced
Compatible Systems	Harsco PGM48/96C, CRRC Baoji GMC-48, Jinying GMC-96
Certified by Zhengzhou Third Institute of Abrasives and CARS Metallurgical & Chemical Institute; fully compliant with Chinese standards GB/T 2492-2017 (rotational strength), GB 2494-2014 (safety rules), JB/T 7992-2017 (surface defects), JB/T 11431-2020 (resin-bonded wheels), and railway-specific specification Q/CR 1-2014. Every batch dynamically balanced for safe operation up to 50 m/s

Key Features & Benefits

✅ Precise Compatibility: Specifically engineered for Harsco PGM-48/PGM-96C grinding trains – plug-and-play compatibility

✅ High-Efficiency Cutting: Zirconia-alumina blend offers >30% higher material removal rate vs. conventional brown fused alumina

✅ Extended Service Life: Glass fiber reinforcement prevents fracture and extends service life, reducing downtime

✅ Safety & Reliability: ISO 9001-compliant production; every batch dynamically balanced for safe operation at 50 m/s

✅ Superior Defect Removal: Proven performance against corrugation, spalling, shelling, and RCF defects

✅ Eco-Efficient Operation: Low dust emission and energy-efficient grinding for sustainable rail maintenance

Molaton rail grinding wheel Product Applications

Frequently Asked Questions

Is Molaton RailCare-L260090 compatible with Loram machines?

No, this model is designed for Harsco and CRRC systems. For Loram, please see RailCare-L260083.

What is the maximum operating speed?

50 m/s (3,000 RPM). Always follow your machine manufacturer’s safety guidelines.
