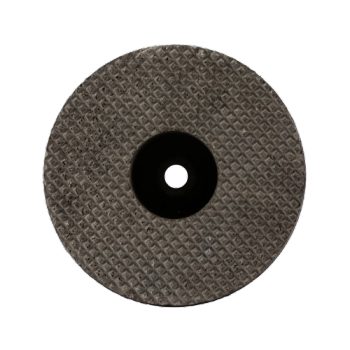

Rail Grinding Wheel MRC-L150080 Turnout Dressing for Harsco Switch Grinding Vehicles

group name: Railway Grinding Wheel

Min Order: 1 piece

brand name: Railway Maintenance Equipment & Solutions

model: MRC-L150080

Nearest port for product export: no

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, D/P D/A

update time: Sat, 21 Mar 2026 14:24:48 GMT

contact supplier

Paramtents

Category Rail Grinder
Process Hot Pressing
Materials luminum Matrix+ Zirconia+ Glass Fiber
Hardness-Material Identification Z/A F16Y5B
Granularity 16 Grit
Packaging Wooden Case
Certification ISO
Business Model Customization
Heavy Haul Railway Axle Load Capacity ≥ 30t

Packging & Delivery

Min Order1 piece

Briefing

Model: 150mm×80mm×5/8
Gross Weight: 4.26 kg
Packing Dimensions: 200×100×180 mm
Compatible With: HARSCO
Hot Press | ZA

Detailed

Molaton RailCare-L150080 Rail Grinding Wheel Product Description

Molaton RailCare-L150080:Efficient Dressing Wheel for Harsco Turnout Modules

The MRC-L150080 is a precision dressing wheel designed for use in Harsco’s switch and crossing grinding modules. With a standard 5/8" bore and 150×80mm profile, it seamlessly integrates into Harsco's rail maintenance systems. The zirconia-resin abrasive, reinforced with glass fiber, delivers accurate edge control and extended service life.

Molaton RailCare-L150080 Rail Grinding Wheel Specifications

Technical Specifications
Parameter	Value
OD×Thickness×Bore	150 x 80 x 5/8 mm
Gross Weight	6.2 kg
Max Speed	50m/s
Abrasive	Zirconia Alumina (ZA)
Bond	Resin, Glass Fiber Reinforced
Compatible Systems	Harsco RGH20C
Certified by Zhengzhou Third Institute of Abrasives and CARS Metallurgical & Chemical Institute; fully compliant with Chinese standards GB/T 2492-2017 (rotational strength), GB 2494-2014 (safety rules), JB/T 7992-2017 (surface defects), JB/T 11431-2020 (resin-bonded wheels), and railway-specific specification Q/CR 1-2014. Every batch dynamically balanced for safe operation up to 50 m/s.

Key Features & Benefits

✅ Standard Arbor Size: 5/8" (15.88mm) arbor for Harsco auxiliary units

✅ Cost-Effective: Brown fused alumina – low cost, high availability

✅ Routine Maintenance: Handles fillets, rust, minor irregularities

✅ Quick Deployment: Lightweight – single-operator, ready-to-use

✅ Bulk-Friendly Packaging: Bulk packaging for logistics efficiency

✅ Easy Training: Minimal training required

Molaton rail grinding wheel Product Applications
