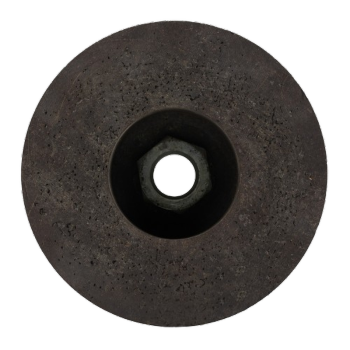

Rail Grinding Wheel MRC-S125065 Irregular for Geismar/Robel 125 Model Equipment
- group name
- Railway Grinding Wheel
- Min Order
- 1 piece
- brand name
- Railway Maintenance Equipment & Solutions
- model
- MRC-S125065
- Nearest port for product export
- no
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Sat, 21 Mar 2026 08:36:21 GMT
Paramtents
Category Rail Grinder
Process Hot Pressing
Materials luminum Matrix+ Zirconia+ Glass Fiber
Hardness-Material Identification Z/A F16Y5B
Granularity 20 Grit
Packaging Wooden Case
Certification ISO
Business Model Customization
Heavy Haul Railway Axle Load Capacity ≥ 30t
Packging & Delivery
-
Min Order1 piece
Briefing
Model: 125×65×20-54×47
Gross Weight: 1.98 kg
Compatible With: Geismar/Robel
Hot Press | ZA/A
Gross Weight: 1.98 kg
Compatible With: Geismar/Robel
Hot Press | ZA/A
Detailed
Molaton RailCare-S125065 Rail Grinding Wheel Product Description
Molaton RailCare-S125065: Irregular-Profile Wheel for Complex Switch Points
The Molaton RailCare-S125065 is a 125×65mm grinding wheel with a stepped 20–54×47mm mounting interface for Geismar/Robel 125 Model handheld units. Its irregular geometry matches acute-angle turnout components, enabling effective material removal on switch points and frogs. The 20-grit zirconia-alumina abrasive with glass fiber reinforcement ensures durability and safety at 50 m/s.
Key Features & Benefits
Molaton RailCare-S125065 Rail Grinding Wheel Specifications
Technical Specifications | ||
| Parameter | Value | |
| OD×Thickness×Bore | 125×65×20-54×47 mm | |
| Gross Weight | 1.98 kg | |
| Max Speed | 50m/s | |
Bond | Resin, Glass Fiber Reinforced | |
Compatible Systems | Geismar or Robel | |
Key Features & Benefits
✅ Stepped Arbor Precision: 20–54×47mm bore ensures perfect fit on 125 Model spindles
✅ Switch Point Specialist: Contoured for acute-angle turnout components
✅ Vibration Dampening: Resin bond absorbs shock from uneven rail surfaces
✅ Compact Power: 125mm size ideal for detailed work without bulk
✅ Rapid Deployment: Ready for immediate use after unpacking
✅ Global Rail Profiles: Compatible with UIC54, S49, and ASCE rail sections
